Water Tank

I decided to install a water tank in the trunk of the Discovery.
For this task, a water tank from the Rehasim company was chosen.

Its dimensions are 105 cm in length, 27.5 cm in height, and 20 cm in width. These dimensions give a volume of 57 liters.

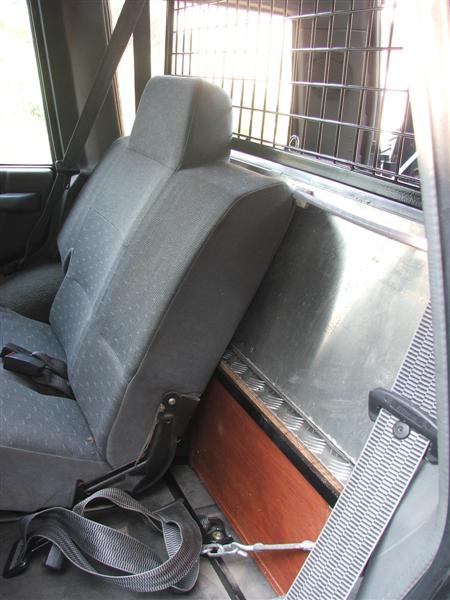

The tank is built in a way that utilizes the triangle created behind the rear seat row, thus adding 14 extra liters, bringing the total to 71 liters.

The tank is installed in an ideal location, right above the rear axle, making it stable and not affecting the vehicle's stability. The tank itself is made of a 1.5mm thick aluminum plate and has an exceptionally low weight, so when empty, its weight is barely noticeable in the vehicle.

The protective net that was between the vehicle's roof and the drawer system had to be cut to allow the installation of the water tank adjacent to the rear seat row. The net was cut, repainted, and reinstalled in its original location.

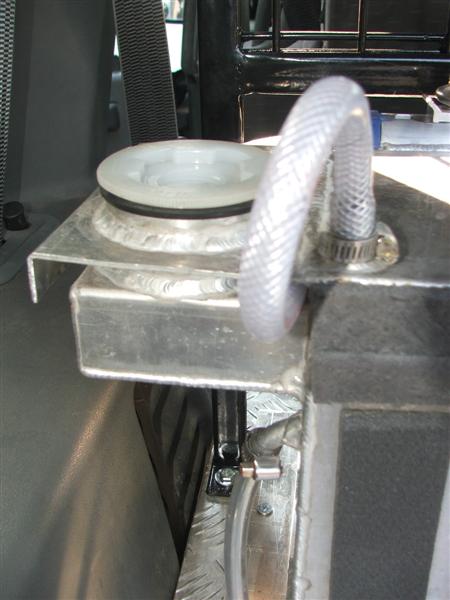

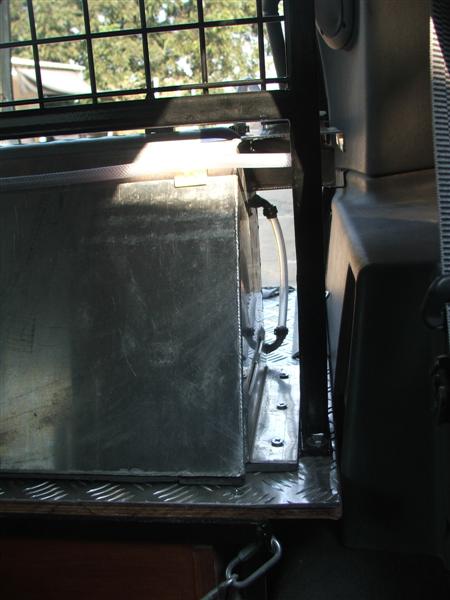

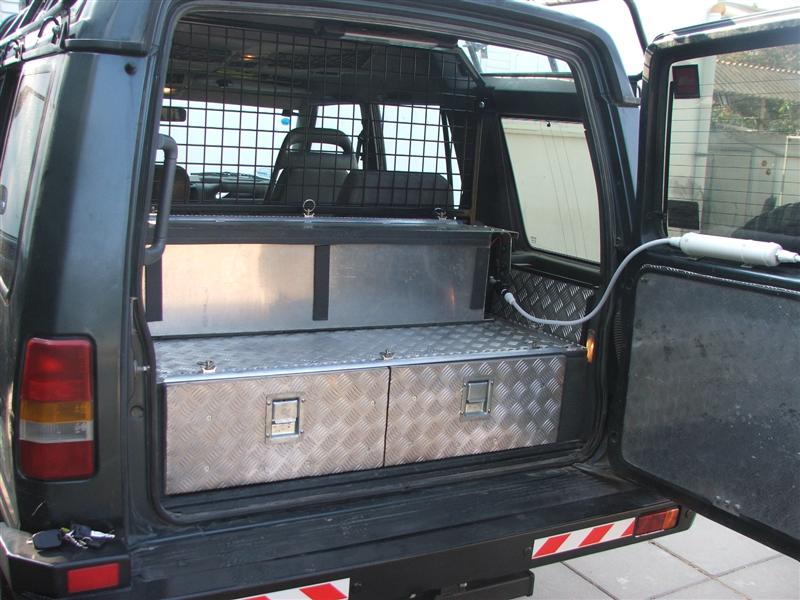

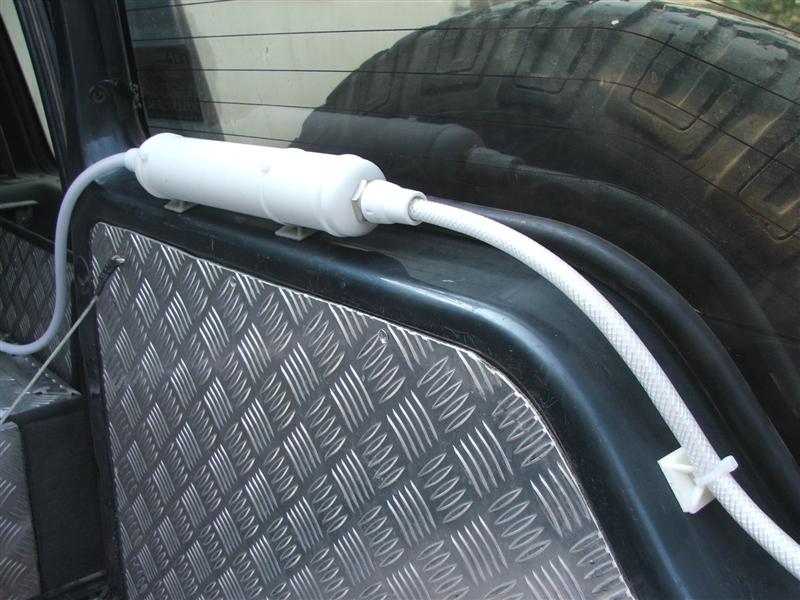

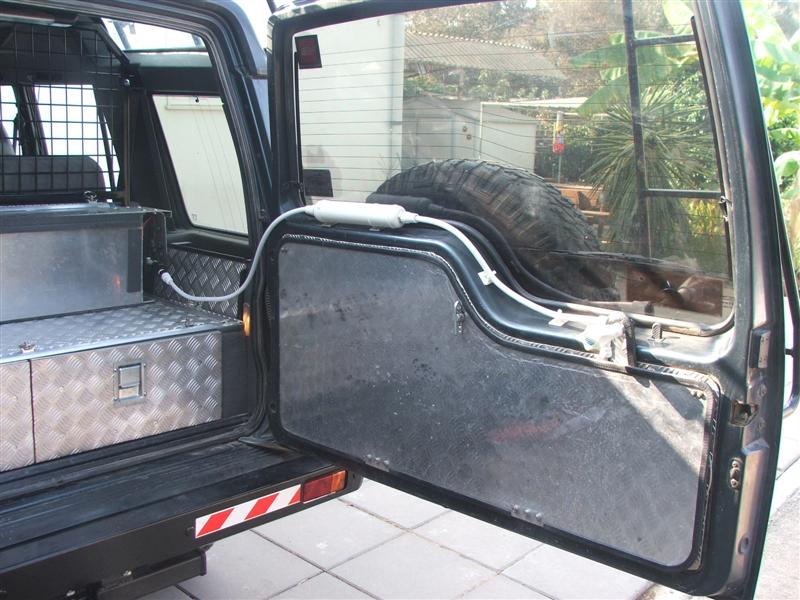

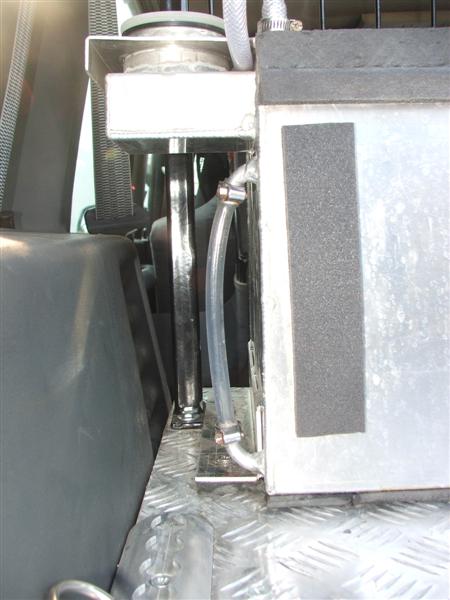

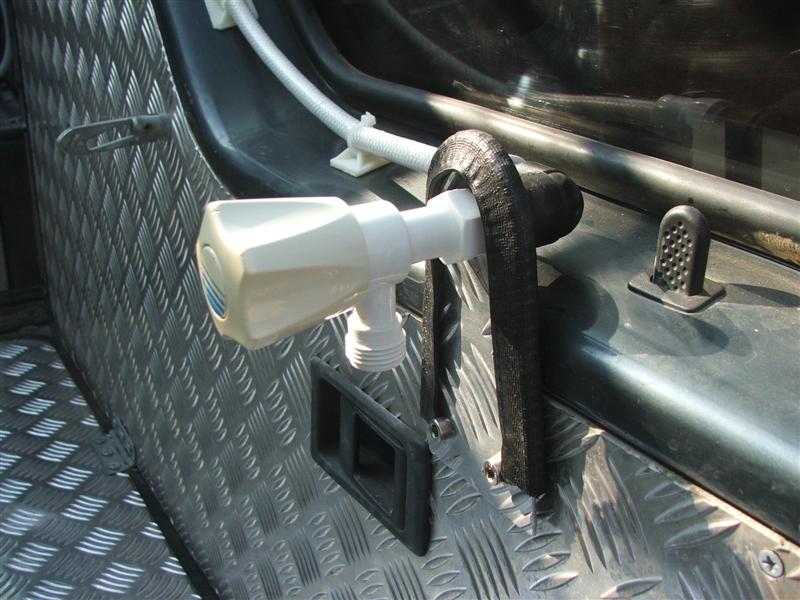

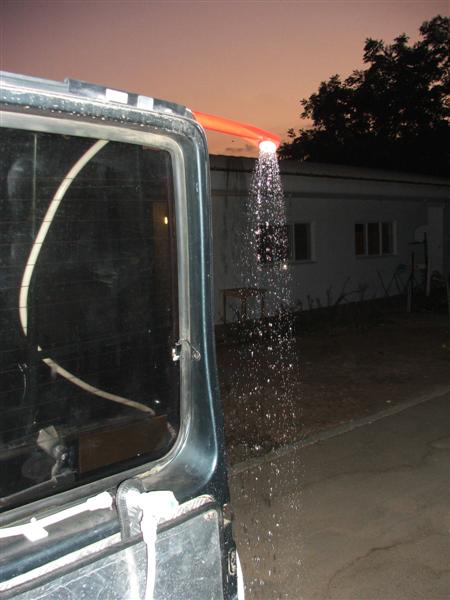

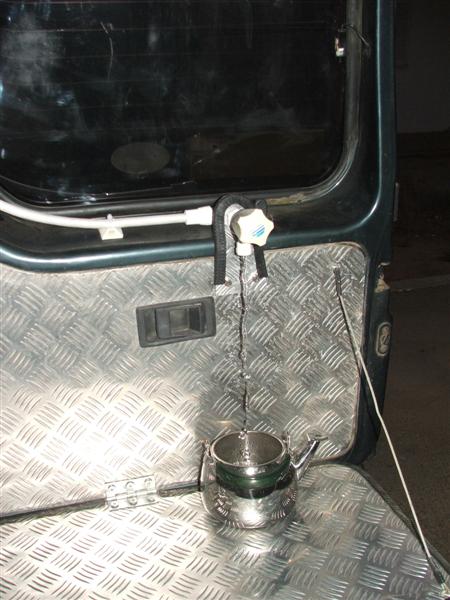

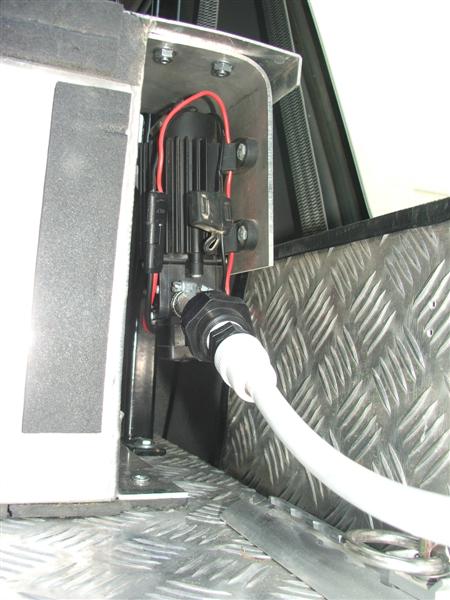

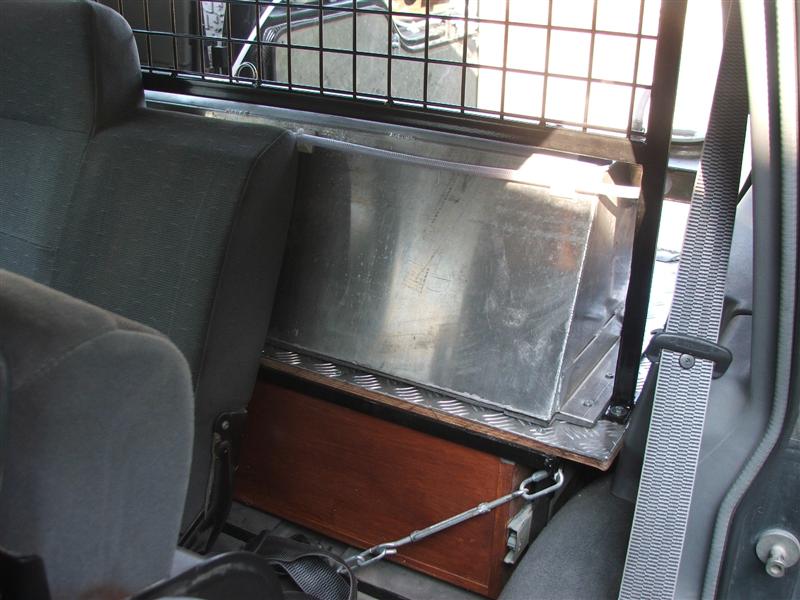

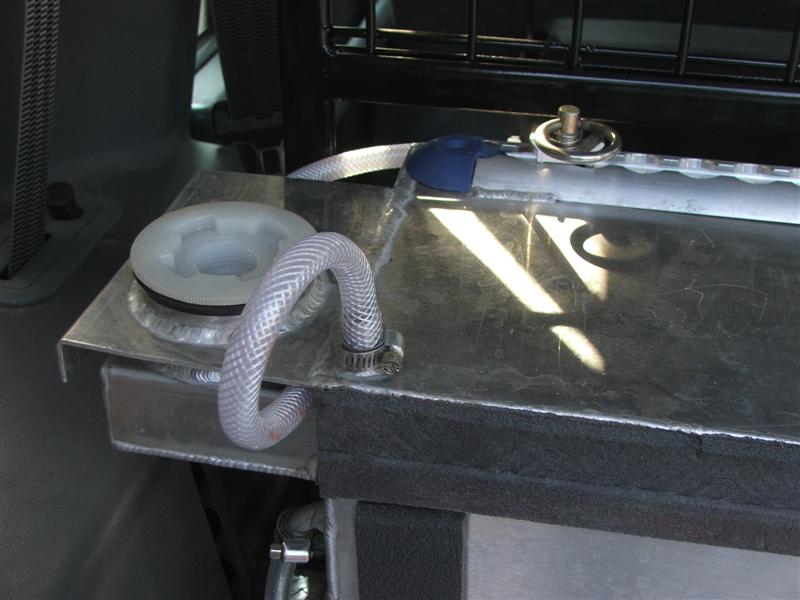

Front of the Tank Front of the Tank Tie Straps Filling Opening Water Gauge Water Gauge Water Outlet from Pump The Valve Water Filter Mounting Bracket Installing Pipes Shower Extension Final Result
